A proper home refill rig combines a food-grade CO2 tank, a cylinder-specific adapter, and a screw-on pressure regulator to move carbon dioxide into your empty SodaStream cylinder. Cylinders hold about 400 g of gas at roughly 900 to 1,000 psi, so each step demands a snug fit, slow valve opening, and a working kitchen scale to confirm the fill. Home refilling skips retail exchange fees and runs around ten to twenty cents per liter of carbonation, though it does push the cylinder out of SodaStream’s official warranty in most regions.
The walkthrough below covers the equipment, the cylinder generations, the fill procedure, and the safety calls that matter before any valve opens.
How SodaStream Cylinders Work and Why People Refill Them
A SodaStream cylinder looks like a small silver bottle, but it is a pressurized steel canister rated for about 900 to 1,000 psi when full. Inside sits roughly 400 g of food-grade carbon dioxide, the same gas that gives seltzer its fizz. The cylinder threads into the back of the machine, and a piercing valve releases gas on demand as you carbonate water. A standard 60 L cylinder weighs about 1.4 kg empty and around 1.8 kg when full, so a kitchen scale gives you the simplest diagnostic test for fill level.
SodaStream’s official model is exchange-only: bring an empty cylinder to a retail partner, pay a swap fee, and walk out with a full one. That model works, but exchange prices have climbed into the fifteen to twenty dollar range in many markets, and rural customers often drive a long way to find a participating store. Home refilling solves both pain points by sourcing gas from a paintball-style tank and transferring it into the SodaStream cylinder through a third-party adapter.
The Pressurized Reality Behind the Convenience
Compressed gas behaves differently from the liquids most people handle at home. Carbon dioxide expands rapidly when released, dropping the temperature of the valve and hose well below freezing within seconds. A poorly seated adapter can leak the entire contents of a 20 oz tank into the room in under a minute, and because CO2 is odorless, you may not notice the leak until you feel light-headed.
SodaStream discourages home refilling and warns that opening the cylinder may void the warranty, though enforcement varies by country and retailer. Despite that, thousands of owners refill routinely, treating the warranty loss as an acceptable trade against years of exchange fees.
Identifying Your Cylinder Type and the Right Refill Adapter
Buying the wrong adapter is the most expensive mistake in this whole process, because a mismatched fitting can permanently damage the cylinder valve and turn a refillable canister into scrap metal. SodaStream has shipped two distinct cylinder designs over the past decade, and each one demands its own adapter.
| Cylinder Generation | Compatible Machines | Valve Style | Adapter Needed |
|---|---|---|---|
| Threaded (older) | SodaStream Spirit, Genesis, Jet, Power, Source | Metal threads on cylinder base | Screw-in paintball adapter (CGA-320 female) |
| Quick Connect (newer) | SodaStream Terra, ART, Duo, E-Terra | Pink or blue plastic collar | SodaStream Quick Connect-compatible refill fitting |
Look at the bottom of your cylinder where it meets the machine. A threaded metal base means an older design; a colored plastic collar that snaps in and out means the Quick Connect system. The machines themselves are not interchangeable, so confirm the cylinder model before you order anything.

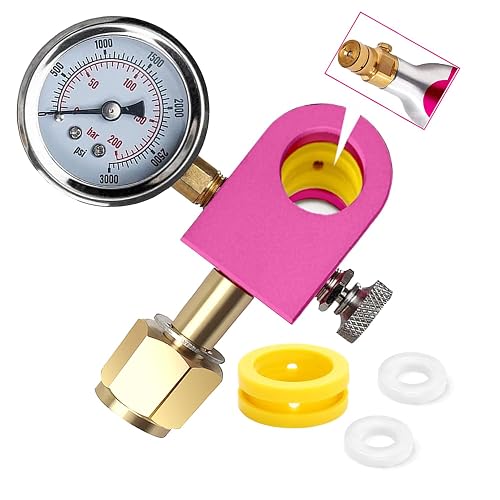

What a Good Adapter Kit Actually Includes
A quality refill kit arrives with the fitting matched to your cylinder, a fresh washer or O-ring, and a pressure-rated hose that threads onto a standard paintball CO2 tank. Some sellers bundle the kit with a screw-on regulator; others sell the CO2 regulator separately. If yours ships without one, plan to buy a CGA-320 compatible regulator rated for food-grade CO2. Avoid universal “fits everything” listings, because the plastic Quick Connect collar and the metal threaded valve are mechanically incompatible.
Once you have the right adapter locked in, the rest of the setup depends on what you connect it to.
A cylinder-specific adapter is non-negotiable. The wrong fitting will either fail to seal or, worse, bend the threaded valve and ruin the cylinder on the first attempt.
Equipment Checklist and Food-Grade CO2 Sourcing
Before you start, lay out every component on a clean table and confirm the gas label. Skipping this step is how people end up carbonating their water with welding-grade CO2 that was never certified for beverages.
- Paintball CO2 tank: A 20 oz or larger aluminum tank filled with food-grade carbon dioxide, the same purity grade used for beer kegs and soda fountains.
- CO2 refill adapter: Matched to your exact SodaStream cylinder generation (threaded or Quick Connect), including a fresh O-ring.
- Pressure regulator: A screw-on regulator with a CGA-320 tank fitting and an output pressure gauge, if your paintball tank does not already include one.
- Digital kitchen scale: Accurate to 1 g, with a flat platform large enough to hold a SodaStream cylinder upright.
- Thread sealant and tools: CO2-rated Teflon tape, replacement O-rings, and a small adjustable wrench for snug connections.
Where to Buy Food-Grade CO2 Locally
Welding suppliers, beverage gas distributors, and paintball shops are your three best sources. Ask specifically for “food-grade CO2” and check the label for a certification that meets beverage standards. Never use unlabeled industrial or welding-grade CO2 in a food-grade CO2 tank you intend to carbonate drinking water, since trace contaminants can carry over into every glass you pour. Most paintball shops will swap a filled 20 oz tank on the spot for around twenty to thirty dollars, which works out to dozens of SodaStream refills per tank.
The Step-by-Step Home Refill Process
The actual transfer takes about five minutes once everything is laid out. Work on a flat surface near an open window, and keep your phone away from the connection so a stray notification does not jostle the hose mid-fill.
Prepare the Empty Cylinder
- Weigh the cylinder: Place the empty SodaStream canister on the scale and record the tare weight, typically around 1.4 kg for a 60 L cylinder. Write it down so you do not have to remember mid-fill.
- Inspect the valve: Look for dents, corrosion, or a valve stem that refuses to spring back when pressed. A damaged cylinder should be exchanged or recycled, not refilled.
- Attach the regulator: Wrap the paintball tank threads with CO2-rated Teflon tape, then screw the regulator on hand-tight plus a quarter turn with a wrench. Do not over-tighten, or you risk cracking the brass fitting.
Connect, Purge, and Fill
- Purge the hose: Crack the paintball tank valve open for one second, then close it. This clears air and moisture from the line so the first gas into the SodaStream cylinder is pure CO2.
- Connect the adapter: Press or screw the adapter onto the SodaStream cylinder until it seats fully. Cross-threading is the fastest way to destroy a valve, so align the threads and turn slowly.
- Open the valve slowly: Crack the tank valve a quarter turn. You will hear a hiss and watch the cylinder and hose frost over as gas expands and cools. That frost is normal and expected.
- Watch the scale and gauge: When cylinder weight climbs to about 1.8 kg, or when the regulator gauge stops rising, close the tank valve. Overfilling is wasteful; underfilling leaves you with half a session.
- Disconnect and reweigh: Bleed any line pressure by pressing the SodaStream valve briefly, then remove the adapter and confirm a net gain of about 400 g of CO2 on the scale.
Never force a stuck valve or slam connections together. A frozen or bent valve is not a refill target; it is a recycle target.
Detecting a Faulty Cylinder Before You Waste a Tank
A refill attempt on a bad cylinder wastes an entire 20 oz tank of food-grade CO2, so a quick pre-fill check pays for itself. Press the small pin in the SodaStream cylinder valve; it should spring back immediately and hiss briefly. If the pin sticks, the valve stays open, or the cylinder hisses continuously for more than ten seconds with no regulator attached, the valve is leaking internally.
Run a wet finger around the valve base to catch small leaks, since soap bubbles can contaminate a food-contact seal. Weigh the suspect cylinder, leave it untouched for an hour, and weigh it again. A drop of more than a couple of grams means the seal has failed and the cylinder needs retirement. Catching these faults before you connect a paintball tank saves both gas and the cost of a wasted adapter seal.
Even a clean fill is wasted if the cylinder itself is failing, which is why checking it first protects every tank you connect.
Verifying Fill Weight Without a Scale
Post-refill pressure verification matters because an under-filled cylinder produces flat soda, while an overfilled one stresses the valve. If you do not own a 1 g-accurate kitchen scale, time the fill instead. With the tank valve cracked a quarter turn and a fully charged paintball source at room temperature, a SodaStream cylinder reaches roughly 400 g of added weight in 90 to 120 seconds.
Listen for the regulator output pressure to stop climbing. When the output gauge plateaus and the frost line stops creeping up the hose, the cylinder has equalized with the source tank. Close the tank valve, wait 30 seconds for the line to settle, and disconnect. Run a test carbonation on the machine; if the cylinder produces a full burst of fizz through three presses, the fill is adequate for normal use.
Safety Precautions and Warranty Risks Worth Knowing
CO2 is heavier than air, displaces oxygen, and can accumulate in enclosed rooms without any visible sign. Treat every refill like working with a small fire extinguisher, with respect for the pressure and a clear escape route for the gas.
Non-Negotiable Safety Habits
- Ventilate the room: Open a window or work near a door. A garage with the door cracked is ideal, especially in winter when homes stay sealed tight.
- Go slow on the valve: Rapid gas expansion can freeze skin on contact and embrittle the hose fittings. Quarter-turn openings are faster than they sound.
- Test the cylinder valve first: Press the pin on the empty SodaStream cylinder before connecting. If it sticks or leaks continuously, the cylinder is at end-of-life and should not be refilled.
- Never refill a damaged cylinder: Dents, deep rust, or visible corrosion mean the steel has lost its pressure rating. Exchange it instead.
The Warranty Trade-Off Most Owners Accept
Home refilling almost certainly voids the SodaStream cylinder warranty in regions where the company enforces its exchange-only policy. In practice, SodaStream does not track individual cylinders, so most refillers never see a claim denied. Still, if you value the warranty above the savings, the official cylinder exchange remains the only warranty-safe path. Check SodaStream’s terms of sale for your country before committing to a refill setup, because policies differ between the US, the EU, and Australia.
Understanding those terms reframes the whole project, since legality and warranty often decide the cost question before convenience does.
Cost Savings, Country Rules, and When to Skip DIY
For most households, home refilling pays for the adapter inside the first six refills and then drops the per-liter cost of carbonation by roughly 60 to 70 percent. A 20 oz food-grade tank fills a SodaStream cylinder about eight to ten times, depending on the tank pressure and ambient temperature.
SodaStream Cylinder Exchange vs Refill: The Numbers
| Cost Factor | Official Exchange | Home Refill | |
|---|---|---|---|
| Up-front cost | None beyond the machine | Adapter kit around $30 to $50 | Refill CO2 roughly $4 to $6 per cylinder |
| Cost per 60 L cylinder | $15 to $20 per swap | $4 to $6 per fill | |
| Cost per liter of soda | $0.25 to $0.33 | $0.10 to $0.20 | |
| Break-even point | No payback needed | Six fills cover the adapter | |
| Warranty status | Fully covered | Voided in most regions |
Country-by-Country Rules You Should Check
Legal and warranty language around refilling SodaStream CO2 cylinders at home varies sharply by region. In the United States, SodaStream’s terms prohibit opening the cylinder, though enforcement against individual owners is rare. The European Union treats refilling as a consumer right in several member states, and SodaStream’s local subsidiaries have softened the stance in Germany and the Netherlands. Australia follows the US pattern with strict exchange language but minimal enforcement. Before investing in a kit, search your country’s SodaStream terms of sale and any local consumer protection guidance.
Common Problems and Their Fixes
| Symptom | Likely Cause | Fix |
|---|---|---|
| Machine does not recognize cylinder after refill | Under-filled (below 1.6 kg) or damaged O-ring | Refill to full weight and replace the seal |
| Persistent hissing after disconnection | Worn valve seal or stuck pin | Retire the cylinder; do not refill again |
| Frost forms only at the hose end | Adapter not fully seated | Disconnect, inspect threads, reseat firmly |
| Cylinder weight will not climb past 1.5 kg | Tank valve clogged or regulator set too low | Check regulator output and tank valve operation |
When the Math Stops Working
If your local exchange drops below fifteen dollars per cylinder, or you only drink one liter of soda a week, DIY refilling rarely pays off in a reasonable timeframe. The same goes for owners who feel uneasy around pressurized equipment, since a single careless moment can crack a valve or empty a tank into the room. For those households, the official exchange program is the safer, warranty-protected answer, and there is no shame in leaving the paintball tank on the shelf.
The Bottom Line
Home refilling a SodaStream cylinder is a practical, repeatable process that saves real money, provided you match the adapter to your cylinder generation, source food-grade CO2, and treat the pressurized transfer with respect. Weigh the cylinder before and after every fill, work in a ventilated space, and retire any cylinder with a sticky valve or visible damage.
FAQ
Can you refill SodaStream CO2 cylinders at home?
Yes. You refill SodaStream CO2 cylinders at home by transferring food-grade carbon dioxide from a paintball-style tank through a cylinder-specific adapter and a pressure regulator. Each refill takes about five minutes and adds roughly 400 g of CO2.
What equipment do I need to refill a SodaStream cylinder at home?
You need a 20 oz paintball-style tank of food-grade CO2, a CGA-320 screw-on regulator, an adapter matched to your cylinder generation, a digital kitchen scale accurate to 1 g, and CO2-rated Teflon tape. A fresh O-ring and small adjustable wrench round out the kit.
Is it safe to refill a SodaStream CO2 canister yourself?
Refilling a SodaStream canister is safe when you work in a ventilated space, open valves slowly, and inspect the cylinder for dents or corrosion beforehand. Undamaged cylinders rated for 900 to 1,000 psi handle dozens of refills without incident.
How much does it cost to refill a SodaStream CO2 cylinder at home vs exchanging?
Each home refill costs roughly four to six dollars in food-grade CO2, working out to about ten to twenty cents per liter of carbonation. The official exchange typically runs fifteen to twenty dollars per swap, so DIY refilling pays back the adapter inside six fills.
What type of CO2 tank do I need to refill a SodaStream?
You need an aluminum paintball-style tank filled with food-grade carbon dioxide, typically a 20 oz size with a CGA-320 valve. Avoid unlabeled industrial or welding-grade CO2, since trace contaminants can carry over into the water you carbonate.
How long does a refilled SodaStream cylinder last?
A properly refilled 60 L SodaStream cylinder produces about 60 L of carbonated water before needing another fill, which works out to roughly four to six weeks for a household drinking one to two liters a day. Storage temperature and carbonation length both shift that range.
